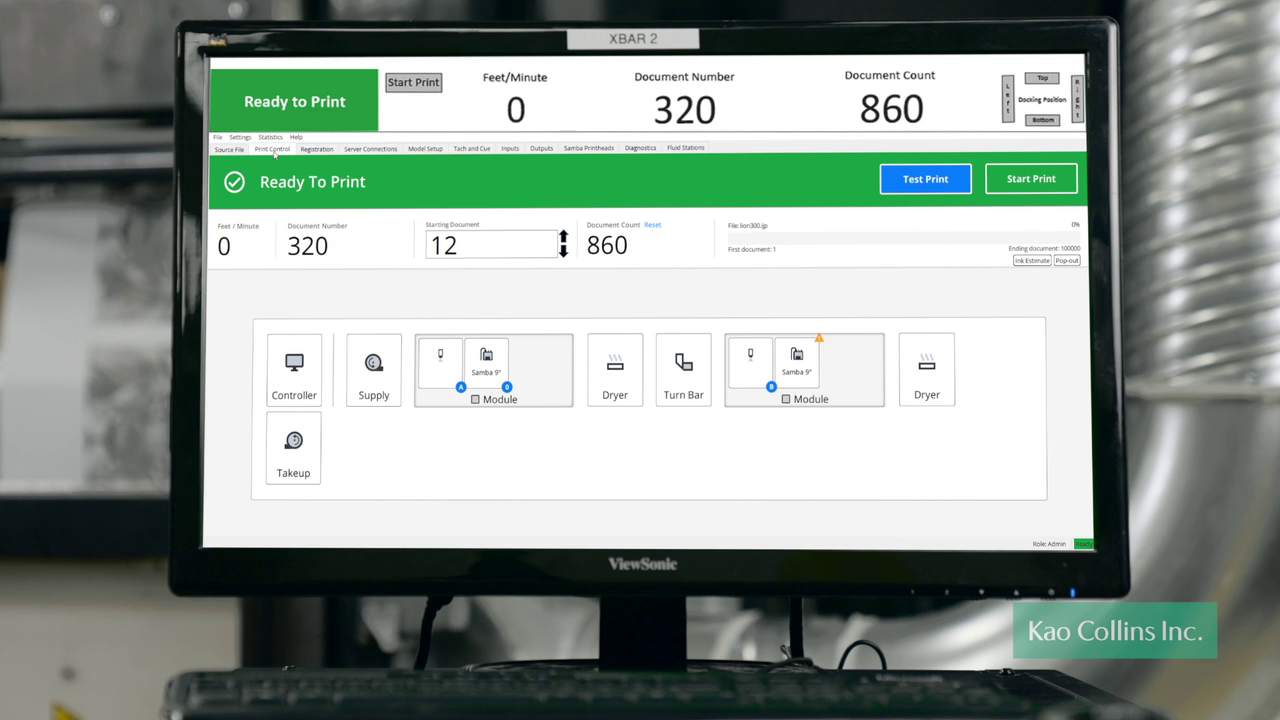

Universal Controller Software Demo
Watch our comprehensive demonstration of the Universal Controller software interface, showcasing advanced features for printhead control, tach and cue management, and ink usage estimation.

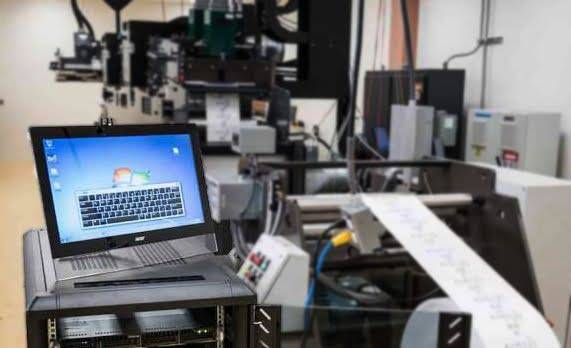

Universal Controller
Advanced printhead control system for X-BAR and legacy Kodak systems
The Universal Controller is a direct replacement for the Kodak CS400, CS410 and CS450 System Controllers, CD130 and CD132 Datastations, which has been developed by KaoCollins Inc. This advanced controller system provides seamless integration with modern inkjet technology while maintaining compatibility with legacy systems, including a new integrated tach and cue system.
Designed to work with the revolutionary X-BAR printhead system, the Universal Controller can print IJPDS and PDF data streams, supporting both the X-BAR 4" and 9" heads, Kodak 6240 printheads, and potentially the DS9100 based on requirements.
The ripping power from your datastream to PDF far exceeds our competitors ripping power, ripping to print at 600dpi x 1200dpi when your press is running at full speed is not a problem. This controller is built to deliver you production quantity with excellent print quality.
Key Features
- Direct replacement for Kodak CS400, CS410 and CS450 System Controllers
- IJPDS and PDF data stream support
- X-BAR 4" and 9" printhead compatibility
- CD130 and CD132 Datastation replacement
- Integrated tach and cue system
- Legacy Kodak 6240 printhead support
- Potential DS9100 compatibility
Interested in Universal Controller?
Contact us for technical specifications, integration support, and pricing information.
Get QuoteController Specifications
System Compatibility
- System Controllers
- CS400/CS410/CS450
- Datastations
- CD130/CD132
- Data Streams
- IJPDS & PDF
- X-BAR Support
- 4" & 9" Printheads
- Legacy Support
- Kodak 6240 Printheads
- Future Support
- Potentially any printhead
Controller Features
- Integration
- Seamless Retrofit
- Installation
- Direct Replacement
- Tach & Cue System
- Integrated
- Mounting
- Custom Solutions
- Support
- Worldwide Coverage
- Development
- KaoCollins Inc.
Controller Benefits
Legacy System Integration
- • Direct replacement for Kodak 6240/DH90
- • Seamless retrofit installation
- • Custom printhead mounting solutions
- • Worldwide installation and support
Modern Technology
- • Advanced control algorithms
- • Enhanced data processing
- • Improved system reliability
- • Future-proof compatibility
Software Features Overview
Print Screen Tab
- • Document count & printer model display
- • Simulation mode for diagnostics
- • Tach and cue settings management
- • Printhead enable/disable controls
- • Real-time ink usage monitoring
Tach & Cue Tab
- • Precise cue delay modifications
- • 180° image rotation capability
- • Image dithering for darkness control
- • Auto cue mark functionality
- • Nozzle priming (spit bars)
Samba Printheads Tab
- • Custom waveform configuration
- • DPI settings: 300, 400, 600, 1200
- • Reverse mount for space saving
- • Split printhead functionality
- • Real-time voltage adjustment
